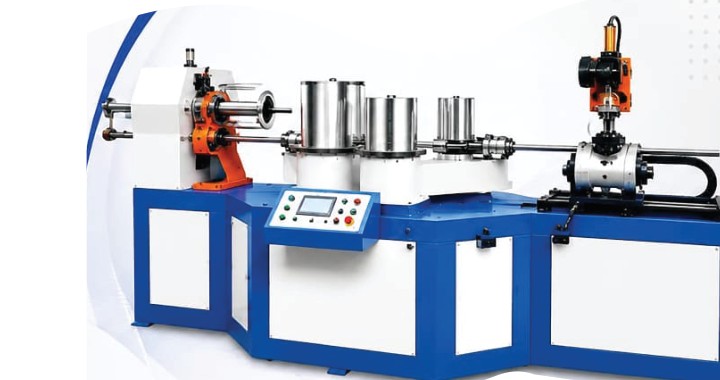

Automatic Paper Tube Making Machine
Fully automatic high-speed paper tube and core production.
A fully automatic solution for high-speed paper tube production, engineered for superior accuracy, efficiency and reliability across textile tube, paper core and composite can applications.
Built for high-speed, continuous tube production
- Up to 25 m/min output (model dependent)
- Multi-ply spiral winding
- Hot air / infrared drying
- Tube ID range 20–200mm
- Handles wall thickness 1–15mm
- PLC with HMI touch-screen control
Full technical specification
Every Automatic Paper Tube Making Machine unit is engineered and assembled in-house at our Coimbatore facility.
| Output capacity | Up to 25 m/min (Model Dependent) |
| Winding method | Multi-ply spiral winding |
| Drying system | Hot Air / Infrared Drying System |
| Tube diameter (ID) | 20 - 200mm |
| Tube length | 50mm - 3000mm |
| Wall thickness | 1 - 15mm |
| Power requirement | 415V, 50Hz, 3 phase |
| Control system | PLC with HMI Touch Screen |
Why manufacturers choose the Automatic Paper Tube Making Machine
High-speed output
Up to 25 m/min production, model dependent.
Multi-ply spiral winding
Builds precise wall thickness from 1–15mm.
PLC + HMI control
Touch-screen operation for fast changeovers between tube sizes.
What this machine produces
- Paper tubes & cores
- Textile tubes
- Composite cans
- Custom-length tube stock
Where it's used
- Industrial Packaging
- Textile Manufacturing
- Export Markets
From paper reel to finished tube
You may also need
Paper Edge Protector Production Line
Full production line for paper angle edge protectors, 12-layer lamination.
Automatic Paper Tube Drying Machine
High-speed rotary drying system for continuous production.
Paper Tube Recutting Machine
India’s first full-auto feature paper tube recutting machine.
Ready to spec an Automatic Paper Tube Making Machine for your line?
Talk to our engineering team about capacity, tooling and installation timelines.
