MST500RTF

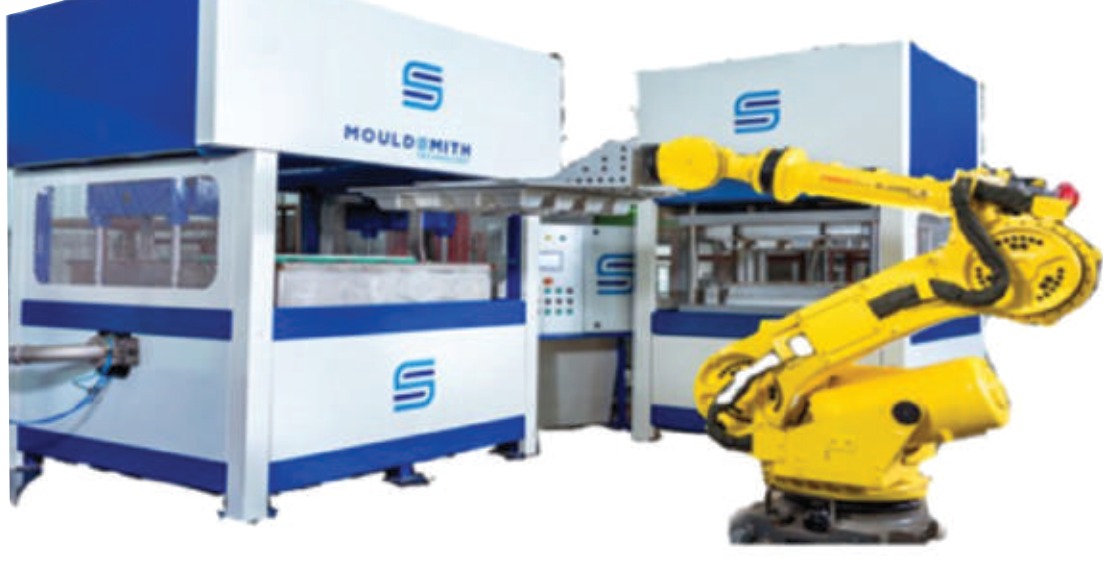

Fully-automatic thermoforming with integrated 6-axis robot arm.
The MST500RTF pairs Rabwin Mouldsmith’s precision hot-press tooling with a FANUC R2000LA 6-axis robot for fully unattended part handling — built for manufacturers who need consistent, high-volume moulded fibre output without manual intervention.
Engineered for unattended, high-volume production
- Integrated FANUC 6-axis robot handling
- PLC-controlled hot press cycle
- 500–1000 kg/day pulp throughput
- Automatic product stacking robot compatible
- Suitable for tableware & industrial trays
- Thermic oil or electric heating options
Full technical specification
Every MST500RTF unit is engineered and assembled in-house at our Coimbatore facility.
| Capacity of machine | 500 to 1000 kg/day |
| Plates size | 1000 X 950 mm |
| Product depth | Up to 70mm |
| Vacuum capacity | 2.5 m3/h |
| Air requirement | 9 CFM |
| Machine power | 15 KW |
| Hot press | 40 tons |
| Floor area required | 5m X 4m X 4m |
| Heating load | 100,000 Kcal/hr |
| Control type | PLC system |
| Robot model | FANUC Robot R2000LA |
Why manufacturers choose the MST500RTF
Unattended part handling
The integrated 6-axis robot loads, unloads and stacks finished parts without an operator.
High-volume throughput
500–1000 kg/day of pulp processed into finished, trimmed product.
Repeatable PLC control
Consistent hot-press cycles and wall thickness, run after run.
What this machine produces
- Drinking cups
- Bowls
- Round & square plates
- Compartment meal trays
- Clamshell food boxes
- Food containers with lids
Where it's used
- Food Service & QSR
- Retail Packaging
- Catering & Airlines
From raw fibre to finished product
