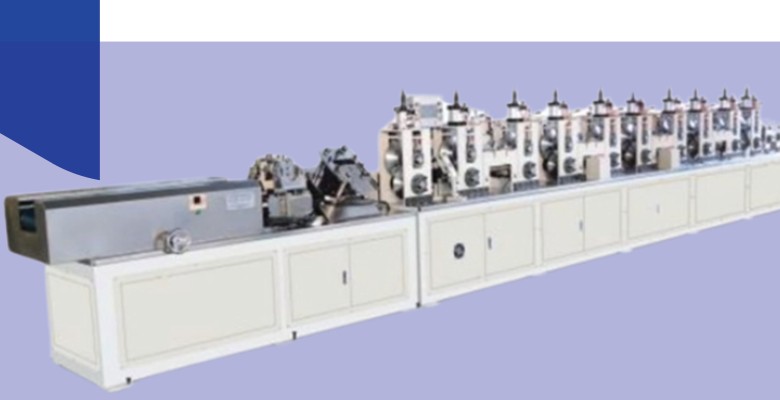

Paper Edge Protector Production Line
Full production line for paper angle edge protectors, 12-layer lamination.
A complete production line for paper angle edge protectors, laminating up to 12 layers with servo-controlled cutting for consistent length and squareness on every piece.
Precision 12-layer lamination, run continuously
- Up to 50 m/min production speed
- 12-layer lamination
- Servo cutting for precise lengths
- PLC control system
- W 20–100mm / L 150–3000mm / T 2–8mm range
- ~4500kg heavy-duty build
Full technical specification
Every Paper Edge Protector Production Line unit is engineered and assembled in-house at our Coimbatore facility.
| Product paper angle production | W=20 to 100mm, L=150 to 3000mm, T=2 to 8mm |
| Production speed | Up to 50 M/Min |
| Paper layers | 12 Layer |
| Control system | PLC |
| Cut off method | Servo Cutting System |
| Total weight | 4500KG approx |
| Power | 15 KW |
| Floor area required | 30M X 4M |
Why manufacturers choose the Paper Edge Protector Production Line
12-layer lamination
Consistent strength and squareness across every edge protector.
Servo-precision cutting
Accurate, repeatable lengths from 150mm to 3000mm.
50 m/min line speed
High-throughput output for export-scale packaging demand.
What this machine produces
- Paper angle / edge protectors
- Export crating & palletising protection
- Custom-length protector stock
Where it's used
- Industrial Packaging
- Export Markets
- Logistics & Freight
From paper reel to finished edge protector
